Interface Guide

Title Bar

No.	Name	Function Description
①	Software Name	Displays the current software name and version number

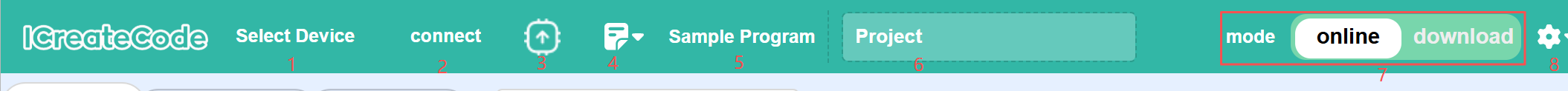

No.	Name	Function Description
①	Select Device	Select the type of device you want to use, including ICBricks, ICRobot, and micro:bit.
②	Connect	Select the connection method, including Serial Port, Bluetooth, Wi-Fi, and QR Code.
③	Firmware Burning	Select and flash different firmware versions, including the Standard Firmware and the Xiaozhi Firmware versions.
④	File	The drop-down menu provides three ways to open files: New Project, Open from Computer, and Save As. + Project files saved in Interactive Mode can only be uploaded and used in Interactive Mode. + Project files saved in Download Mode can only be uploaded and used in Download Mode.
⑤	Sample Program	Includes sample programs in SB3 and Python formats. After selecting any sample, the programming interface will automatically load the corresponding content.
⑥	Program	Rename the current project.
⑦	Mode	Switch between Online Interactive Mode and Download Mode.
⑧	Settings	Configure language and theme color settings.

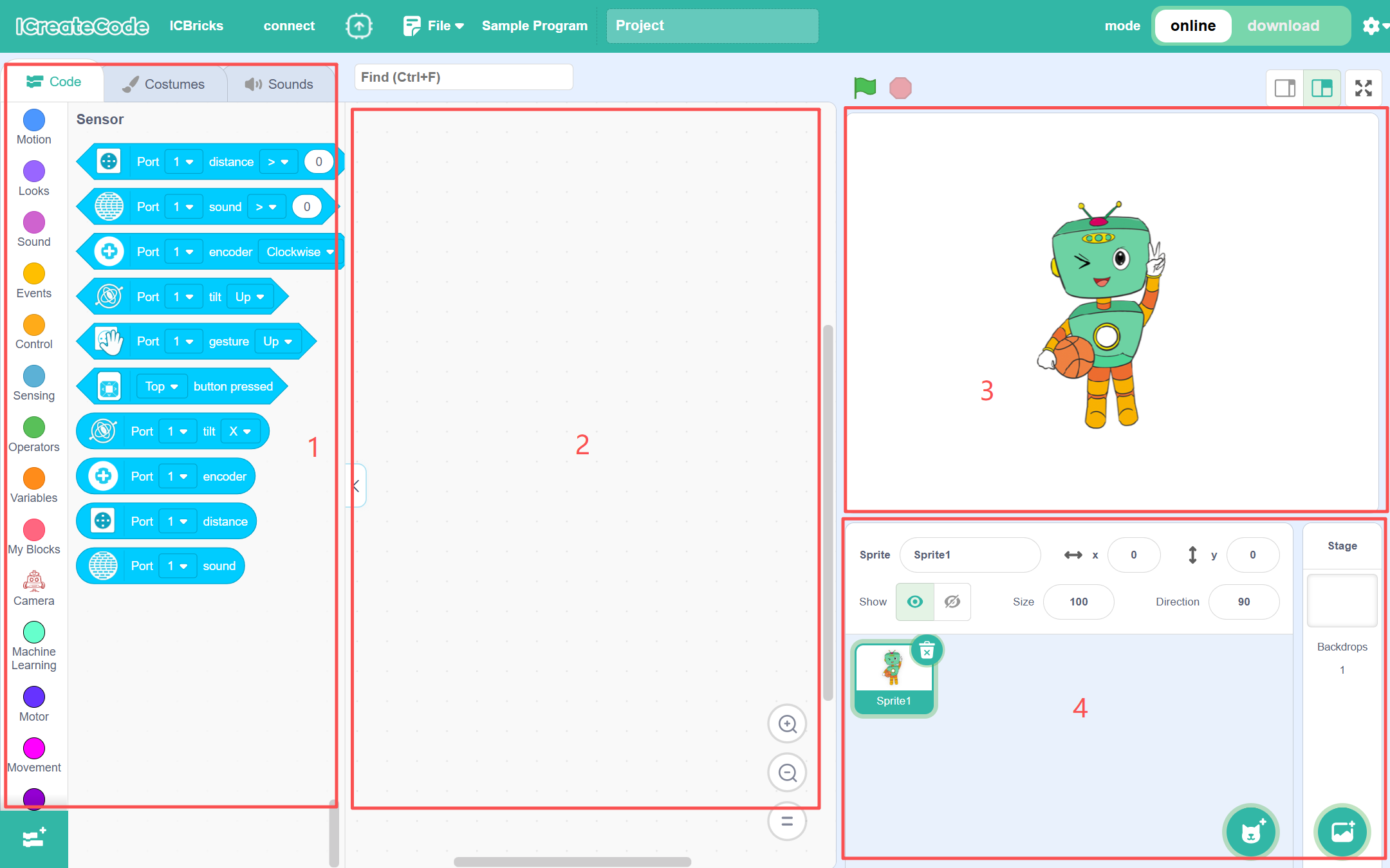

No.	Name	Function Description
①	Block Commands	Used to select different categories of coding blocks and extensions. Block categories include: Motion, Looks, Sound, Control, Events, Sensing, Operators, Variables, and My Blocks.
②	Coding Area	Drag block commands into this area to create and edit your program.
③	Stage Area	Displays the results/effects after the sprite has been programmed.
④	Character Area	Add/edit characters or background images for the stage

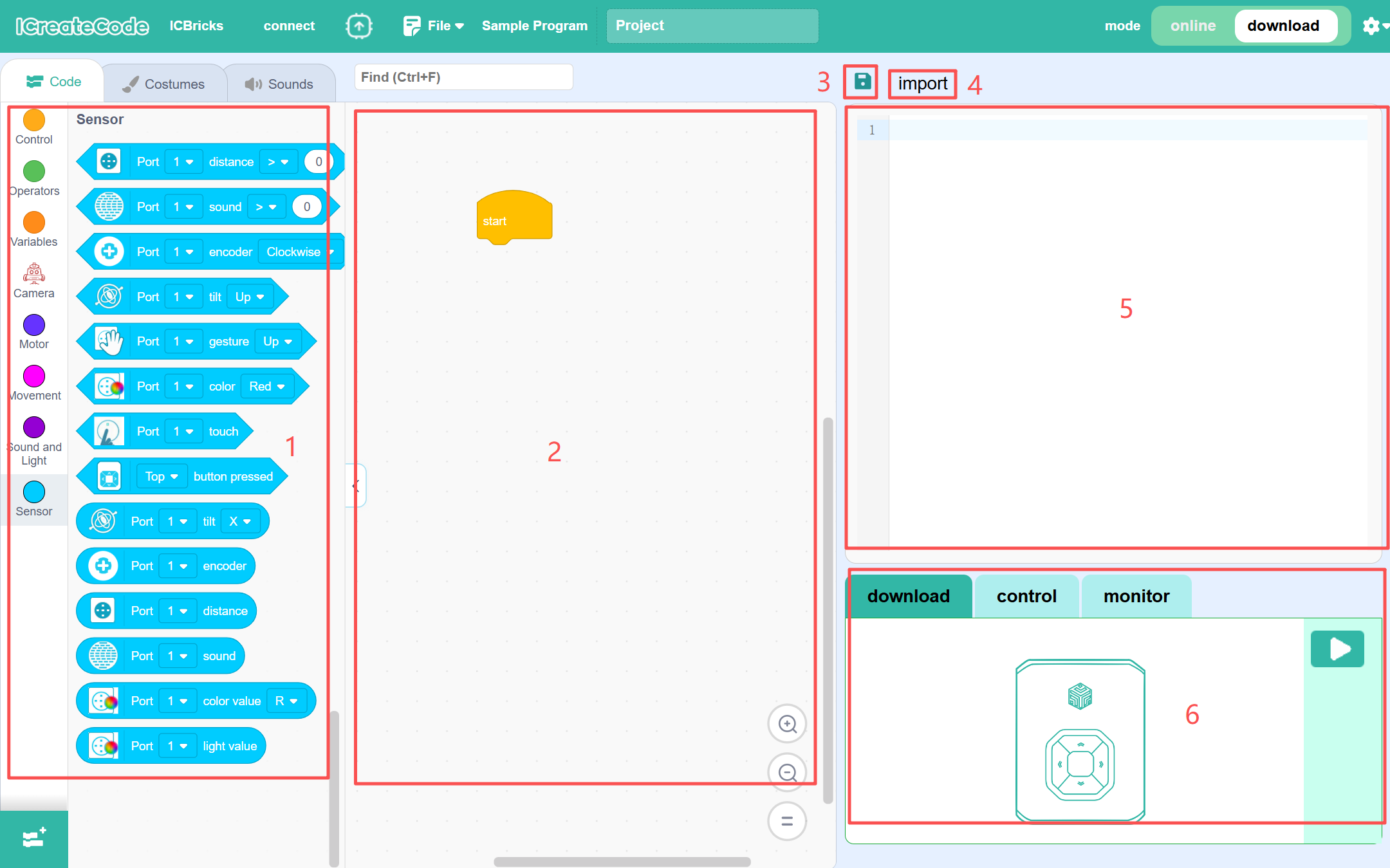

No.	Name	Function Description
①	Block Commands	Used to select different types of programming commands, allowing you to program the mainboard and various sensors. Block commands include categories such as Control, Operators, Variables, Sensors, etc.
②	Coding Area	Drag the block commands into this area to create and edit the program.
③	Save	Save the current project locally.
④	Import	Import an existing local file with the .py extension into the current project.
⑤	Lua Coding Area	This area can be used to display the Lua programming corresponding to the block commands on the left, with the ability to add or delete operations. Note: This Lua has no OS.
⑥	Hardware Control Panel	+ Download: Upload the program to the ICBricks. + Console: When ICBricks is connected to the computer, you can view the device status connected to the main controller’s port. + Serial: Used to receive and send serial data.
